| CITY OWNED SYSTEM – MUNICIPAL OPERATION (M.O.) – BEGINS OPERATION |
| . |
| . |
On April 5, 1920, the voters of the city of Detroit
approved the issuance of $15,000,000 in bonds that
would allow the city to build and operate a separate
street railway operation in competition against the
privately-owned Detroit United Railway (DUR). When
the city-run system struggled to survive against the
larger DUR system, the city began taking-over and
operating its cars over the DUR rails no longer under
a franchise agreement. After a brief five-route joint-
operating agreement in early 1922, the DUR decided
to sell its lines to the City of Detroit for $19,850,000.
approved the issuance of $15,000,000 in bonds that
would allow the city to build and operate a separate
street railway operation in competition against the
privately-owned Detroit United Railway (DUR). When
the city-run system struggled to survive against the
larger DUR system, the city began taking-over and
operating its cars over the DUR rails no longer under
a franchise agreement. After a brief five-route joint-
operating agreement in early 1922, the DUR decided
to sell its lines to the City of Detroit for $19,850,000.
| The transit vehicles displayed in this 1920's Photo Gallery were purchased under the city-owned Municipal Operation (MO) and the D.S.R. between 1921 and 1929. When the fledgling city-run system began operations on Feb. 1, 1921, a fleet of twenty streetcars operated over two lines, but quickly grew to a fleet of 428 cars by year's end. After the city's take-over of the DUR city lines in May 1922, its streetcar and trailer-car fleet of 1,389 would grow to a fleet of 1,706 by 1929. |
| Please click-on link to return to the "PHOTO GALLERY" Main Page. |
| THE CITY'S PARTIAL PURCHASE OF D.U.R. TRACKAGE AND EQUIPMENT |
DETROIT'S FIRST PETER WITT STYLE STREETCARS
| As a result of that April 1921 vote, the MO was able to purchase DUR trackage built since the 1911 "day-to-day" operating agreement, including rails along Warren Ave., Twelfth, Epworth, Junction and Linwood streets, and portions of the Grand Belt and Hamilton lines. An arbitration agreement was reached where the purchase of 128 of the DUR's streetcars and trailer-cars were also included in that sale, totaling $2,297,277. Effective Dec. 23, 1921, the Municipal Operation (MO) received 105 of the DUR's Double-Truck Steel Cars (#3021-3125) built between 1915 and 1919 by both the Kuhlman Car Company (79) and by the DUR (26), and 23 trailer-cars (#5100-5122) built in 1916, also by the G. C. Kuhlman Car Company. Meanwhile, on Nov. 8, 1921, voters approved an Ouster Ordinance referendum that ordered the DUR to vacate 21¼ miles of track along the Woodward and Fort lines—routes where the franchises had expired. With the impending loss of its rails along Woodward (south of Milwaukee) and the East and West Fort lines (between Artillery (Livernois) on the west-side and Baldwin on the east-side), the DUR purposed a joint operating agreement with the city system. By January 16, 1922, joint-service was being operated along five DUR routes into downtown; Trumbull, Hamilton, Woodward, Fort-East, and Fort-West. |
| In total, 250 of these single-truck Birney Safety Cars (#100-349) were purchased by the city in 1921; the country's second largest fleet of Birneys. The Birney style streetcar—the first mass- produced standard streetcar in North America—was a small, light-weight, inexpensive streetcar designed in 1915 by Charles O. Birney and Joseph M. Bosenbury. Initially, the fleet was stored at a newly purchased site at Shoemaker and St. Jean streets (the future Shoemaker Carhouse). [Walter P. Reuther Library, Wayne State University photo #48426 — see disclaimer below] |
FIRST CITY-OWNED STREETCARS: BIRNEY SAFETY CARS
| The city's first fleet of Birney cars were considerably smaller than the larger-size streetcars Detroiters were use to or were promised by city officials. In this Jan. 20, 1921 photo, car #117 (also built by Osgood-Bradley) is pictured in a line-up of Birneys near the Shoemaker carbarn shortly after delivery. Twenty cars had arrived by the MO's first day of service on Feb. 1, 1921. [photo source: online – unknown (unidentified) photo collection] |
On May 15, 1922, the Detroit Department of Street
Railways (DSR) began its first day of operation.
Railways (DSR) began its first day of operation.
| . |
| . |
| The first of the streetcars owned by the City of Detroit to be delivered was car #100—a Birney Safety Car built by the Osgood-Bradley Company of Worcester, MA. Delivered on Jan. 5, 1921, car #100 was also the first car to be powered-up for a test-run on Jan. 16th along the newly built track and overhead at St. Jean and Waterloo (E. Vernor). The new (32-pass) Birney streetcars arrived sporting the city-run transit system's first adopted paint scheme of straw yellow body, brown doors and windows with cream trimming, and black running gear (under carriage). [photo courtesy of the S. Sycko photo collection] |
| . |
| When the Municipal Operation began its first day on February 1, 1921, sixteen cars were utilized to begin service along both the Charlevoix-Buchanan and St. Jean routes. The longer of the two lines—Charlevoix-Buchanan—began with ten cars operating along Charlevoix from Alter Road (city limits) to Bellevue with 3-6 minute headways. The line was later completed to Buchanan and Junction by late August. Car #194, displaying the "CHARLEVOIX" route sign, was one of 100 Detroit Birney cars (#150-249) built by the J. G. Brill Company of Philadelphia, PA. [photo courtesy of the S. Sycko photo collection] |
| . |
| As the city-run operation grew to seven routes by year's end, the Birneys played a significant role in providing service along the new city-built routes. The 250 Detroit cars were all built as double-ended cars with two controls, two entrance doors, and two overhead trolley-poles for operation at both ends. Other features included air-operated snow scrapers, tail lights, electric heat, center lighting with opal light shades, and reversible-style wooden seats. [photo courtesy of the S. Sycko photo collection] |
| Unfortunately, the small Birney Safety Cars turned out to be very unpopular with Detroit riders. The small single-truck wooden seat cars were considered uncomfortable and just didn't hold up to the heavy demands of a large city transit system. After the arrival of the much larger Peter Witt style cars, Detroiters would sarcastically refer to the Birneys as "Half-Witts." Within two years the DSR attempted to sell-off 200 of the cars, but only 56 were ever sold. By 1931, only 98 Birneys remained on the roster, but only eighteen of those were able to be used in service. [photo courtesy of the S. Sycko photo collection] |
| . |
| . |
| The 250-car fleet of Birneys purchased under the MO were purchased through six orders built by the following four manufacturers. There were subtle differences among the six orders. |
NOTES:
The Osgood-Bradley built cars #100-124 and #325-349, and some J.G. Brill cars came equipped with
General Electric 264 motors, while the remaining fleet powered by Westinghouse 508A motors.
The Osgood-Bradley built cars #100-124 and #325-349, and some J.G. Brill cars came equipped with
General Electric 264 motors, while the remaining fleet powered by Westinghouse 508A motors.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
First Birney fleet (cars #100-124) originally equipped with coal stove heaters.
| After the DSR take-over of the city lines, the Birneys quickly found themselves reserved to light service lines such as E. Lafayette, Myrtle, Mt Elliott and Woodmere. However, a number of the remaining Birneys not sold or scrapped were rebuilt and converted from double-ended cars to a single-ended car with double doors added. This was done to speed up passengers boarding and existing the car; as was done to car #183 seen here working the Mt. Elliott line. By 1937 only ten Birneys remained. The last Birney car saw service on the East Lafayette line on Feb. 28, 1939. [photo source: Detroit's Street Railways Vol. II: City Lines 1922-1956 (Elmer Kremkow photo)] |
| . |
| . |
| . |
| In July 1921, the Municipal Operation ordered 50 Peter Witt style streetcars from the G. C. Kuhlman Car Company of Cleveland, OH. The city's first fleet of Peter Witt cars began arriving Oct. 8, 1921, sporting the same paint scheme used on the Birney cars—a straw yellow body with brown windows and doors, cream trim and black under carriage. Car #1000 seen in photo was the first of the fifty-car fleet; initially numbered #1000-1049. The large Peter Witt cars were purchased to provide service along two major downtown routes—Woodward and Fort Street— where the city had intended to oust the DUR streetcars off large sections of those lines. [Walter P. Reuther Library, Wayne State University photo #75463 — see disclaimer below] |
| . |
| . |
| Back in 1911—after the city had refused to renew the franchise agreements on those DUR tracks where the franchise rights had expired—an agreement was reached that granted the DUR "Day-to-Day" operation along those expired rails and along any new trackage built by the DUR thereafter. This agreement also included an option for the city to purchase those rails at any time upon voter approval by the citizens of Detroit. On April 4, 1921, the voters of Detroit approved a ballot proposal authorizing the city to purchase 29.5 miles of DUR trackage operated under that "Day-to-Day" plan. With the city now authorized by voters to run its cars along the former DUR rails into the downtown area, city officials decided that larger size Peter Witt style cars would be needed in order to handle the anticipated increase in the municipal system's ridership. |
| . |
| Facing the inevitable ouster of it cars from portions of the Woodward and Fort Street lines, the DUR entered into a joint-service arrangement with the city in late-1921, where cars from both the DUR and MO operated over 5 DUR lines into downtown. To avoid conflicting numbers with the #1000-series DUR cars, the city-owned Peter Witts were renumbered from #1000-1049 to #11000-11049. In this photo Peter Witt car #1037 has now been renumbered as car #11037. During the joint-service operation, the Peter Witts were primarily used on the Trumbull line. [photo source: Detroit's Street Railways Vol. II: City Lines 1922-1956 (Schramm Collection)] |
| . |
| This photo shows the interior (rear facing) view of one of the city's first Peter Witt streetcars. The Detroit Peter Witt cars (at 48'6" long, 8'6" wide) utilized this typical (52-passenger) seating arrangement of long front perimeter bench seats and cross-seats behind the center exit doors. |

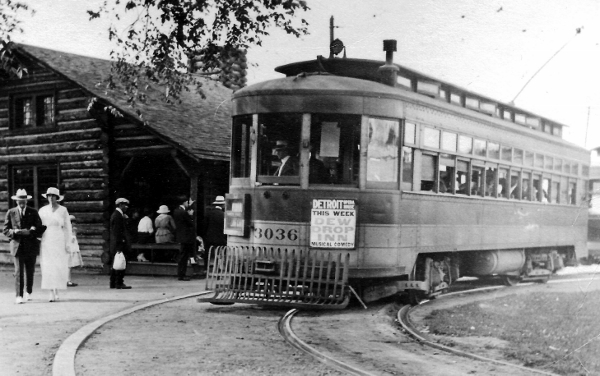

| As part of the 1921 "Day-to-Day" trackage purchase, the MO acquired 105 large-size Double- Truck Steel Body Cars from the DUR. Seventy-nine of these 46-passenger cars (#3021-3099) were built by the Kuhlman Car Company between 1915–1917, and became part of the MO fleet on Dec. 23, 1921. In this August 1917 photo, car #3036 (at that time owned by the DUR) can be seen at the Log Cabin Loop turn-around in Palmer Park at the north end of the Woodward line, where the DUR had erected a log cabin style waiting station just east of the Thomas W. Palmer Log Cabin—which in that day was a major summertime Detroit tourist attraction and museum. [photo courtesy of the R. W. Jackson estate, donated to website by Sandy Jack] |
| PETER WITT STREETCAR: The Peter Witt was a streetcar designed and patented in 1914 by Peter Witt, a Cleveland Street Railway Commissioner. The streetcar's design—with the addition of the center doors as the only exit—reduced the passenger boarding and alighting time at stops, and thus improving schedules. With the conductor now stationed near the center doors (note stool visible left-center of photo) passengers could quickly board through the front doors and then choose to either immediately pay the conductor and sit in the rear seats, or sit in the front and pay the fare just before exiting the car. [Walter P. Reuther Library, Wayne State University photo #75463_1 — see disclaimer below] |
| . |
| PETER WITT STREETCAR: The Peter Witt was a streetcar designed and patented in 1914 by Peter Witt, a Cleveland Street Railway Commissioner. The streetcar's design — with the inclusion of the center doors as the only exit — reduced the passenger boarding and alighting time at stops, and thus improving schedules. With the conductor now stationed near the center doors (note stool visible left-center of photo) passengers could quickly board through the front doors and then choose to either immediately pay the conductor and sit in the rear seats, or sit in the front and pay the fare just before exiting the car. |
| With the purchase of the fifty large Peter Witt cars, along with the former DUR large-size streetcars and trailers, the five-line joint-operating arrangement into downtown made it possible for the small fledgling city-run transportation department to become an integral part of the Detroit transportation scene. By early 1922, the municipal system operated with a total fleet of 428 cars. In addition to the five DUR joint-lines, the operation now provided service along eight city built streetcar routes. |
| That 1921 DUR rail purchase also included the acquisition of 23 (52-passenger) double-truck trailer-cars (#5100-5122) built by Kuhlman Car Co. in 1916. Trailers were motorless cars that were pulled by streetcars. The DUR began purchasing these large steel body trailers as a less expensive way to service their heavily patronized lines. In this photo, taken along Woodward at Campus Martius in 1917, two of these attached streetcar/trailer combos can be seen operating along Woodward Avenue. The two #3000-series DUR Kuhlman "deck-roof" cars seen pulling their #5100-series Kuhlman "deck-roof" trailers would all be owned by the city within 3 years. [Detroit Publishing Company photo courtesy of Shorpy Historical Photo Archive] |
All Walter P. Reuther Library, Wayne State University photos posted with permission.
All rights, including those of further reproduction and/or publication, are reserved in full by the Walter P. Reuther Library, Wayne State University.
Photographic reproductions may be protected by U.S. copyright law (U.S. Title 17). The user is fully responsible for copyright infringement.
All rights, including those of further reproduction and/or publication, are reserved in full by the Walter P. Reuther Library, Wayne State University.
Photographic reproductions may be protected by U.S. copyright law (U.S. Title 17). The user is fully responsible for copyright infringement.
(Click-on photo to view complete image)
(Click-on photo to view larger image)
| . |
| Of the 105 Double-Truck steel cars received from the DUR, 26 of those cars (#3100-3125) were built by the DUR between 1918-1919. While the Kuhlman built steel body cars sported a deck roof, the DUR built cars were built with arch roofs. In this photo, car #3104, built by the DUR in 1919, is seen during its last days worn and still sporting the DSR's third paint scheme of cream with green trim, launched in 1927. The car's coal stove's smoke stack can still be seen on top of the front roof. The last of the double-truck steel body cars were all retired by the DSR in 1947. [ source: Detroit's Street Railways – Vol. II: City Lines 1922-1956 (Howard Babcock photo)] |
